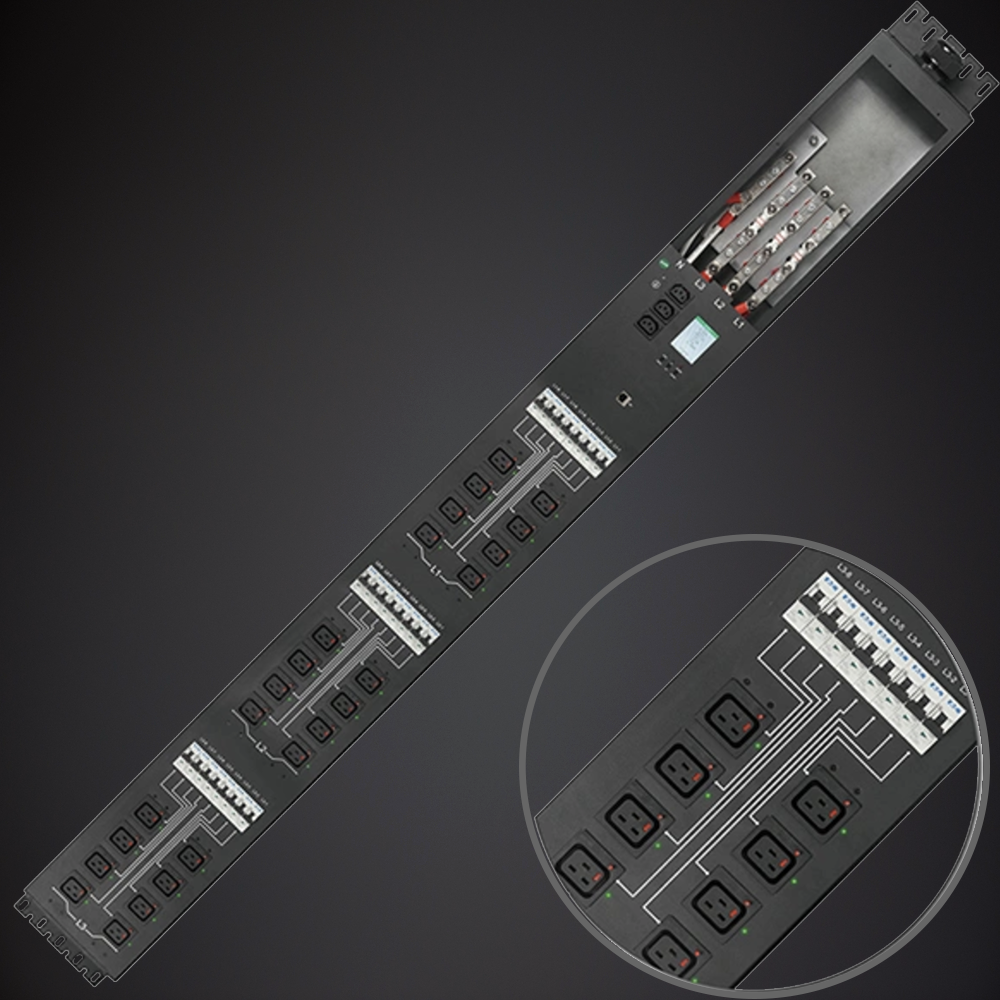

MT APDU C19x24 - 160A
400V WYE | 160A | 115KW
ETL Listed High Power Smart 160A PDU 24ports C19 20A each outlet TCP/IP/SNMP remote control each outlet For IT Data Center and industrial equipment.
Main Benefits:1. With a maximum load of 160A per phase, 240V/415V 160Amp 115KW.
2. Multiple brands circuit breaker option.
3.Supports multi-functional selection of PDU outlets.
For example, the color of the outlet can be red, yellow and blue, all black color,or black socket with IEC lock function,more tighter and safety.
4. Support color customization of housing,such as red,
yellow, blue, white, purple, black etc.5. Humanized design, add 3ports C13 small output, can provide power for network switches.
6. Each outlet with a independent circuit,breaker, in addition, the main input terminal box installed 180A fuse for input protection, meticulous double protection.7. Customized mounting bracket,with multiple positioning screw holes ,it make the PDU
lock more firmly.Socket Standard
24pcs C19 (can be changed as client request)
Input voltage
240V Single phase(LNG) to 240V single phase
380V 3phase(LLLNG) to 220V single phase.
415v 3phase(LLLNG) to 240V single phase
480V 3phase(LLLNG) to 277V single phase.
input connector
160A x 5 wires(or juction box, input breaker optional,price difference)
Frequency
50/60Hz
Total current
Max 480A
Wire spec
UL certification,with flame retardant function
Remote Control
integrated remote control each outlet,TCP/IP,Hot-swap control meter
Color
Black or custom
Shell Material
Uninflammable PC module,sheet metal housing
Mounting Method
horizontal or vertical Installation
Net weight
20kgs
